Name: LSZH Sheath Bow Type FTTH Drop Cable Four Core Multimode
Brand: DONGGUAN TW-SCIE CO., LTD.
SKU: LSZH Sheath FTTH Optical Fiber Cable
Price: 0.02 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: 4 Core FTTH Drop Cable

Application: FTTH,FTTH FTTB FTTX Network,telecommunication,Telecom

Fiber Count: 4 Core

Color Of Loose Tube: Blue, Orange, Green, Brown

Strength Member: Steel Or FRP

Jacket Color: Black, White

Cable Dimension: 3.1*2.0mm

Cable Weight: 8.2kg/Km

Highlight:

Bow Type FTTH Drop Cable

LSZH Sheath FTTH Drop Cable

Four Core ftth drop wire

Basic Infomation

Place of Origin: DONG GUAN CHINA

Brand Name: TW

Certification: SGS ROHS REACH ISO

Model Number: LSZH Sheath FTTH Optical Fiber Cable

Payment & Shipping Terms

Packaging Details: Wooden Drum

Delivery Time: 5working days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 10000KM/mouth

Gallery

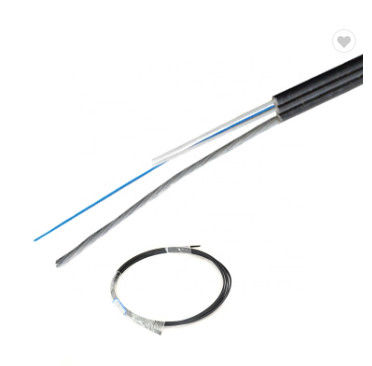

LSZH Sheath Bow Type FTTH Drop Cable Four Core Multimode

Product Description

4 Core LSZH Sheath Bow Type FTTH Drop Cable

Applications

Used in access network oras access cable from outdoorto indoor
in customer premises network.
Used as access building cable in premises distribution system,especially used in indooror outdooraerial access cabling.

Features:

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
Two parallel strength members ensure good performance of crush resistance to protect the fiber
Simple structure, light weight and high practicability
Novel flute design, easily strip and splice, simplify the installation and maintenance

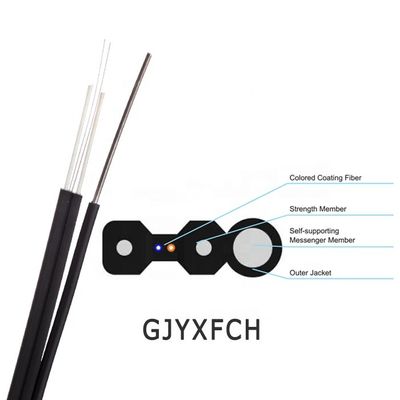

Cable construction details :

Items			Description
Number of fiber			2-24cores
Fiber	type		G652D/G657A/Multimode
	diameter		250µm
Strength member	materia		Kevlar yarn
Loose tube	diameter		0.9-1.2mm
	material		/
Outer sheath	material		PVC/LSZH
	diameter		1.62.0-3.06.0mm
Cable size (Height * width)			/
Cable weight			5.5-28.5KG
Installation Temperature range(ºC)			-20+60
Operation and transport temperature(ºC)			-40+70
Min Bending Radius(mm)		Long term	10D
Min Bending Radius(mm)		Short term	20D
Min allowable Tensile Strength(N)		Long term	40
Min allowable Tensile Strength(N)		Short term	80
Crush Load (N/100mm)		Long term	200
Crush Load (N/100mm)		short term	1000

Standard color of fiber and tube

Fiber style		Unit	SM G652	SM G652D	MM 50/125	MM 62.5/125	MM OM3-300
condition		nm	1310/1550	1310/1550	850/1300	850/1300	850/1300
attenuation		dB/km	≤	≤	≤	≤3.0/1.0	≤3.0/1.0
attenuation		dB/km	0.36/0.23	0.34/0.22	3.0/1.0	----	----
Dispresion	1550nm	Ps/(nm*km)	----	≤18	----	----	Dispresion
Dispresion	1625nm	Ps/(nm*km)	----	≤22	----	----
Bandwith	850nm	MHZ.KM	----	----	>=400	>=160	Bandwith
Bandwith	1300nm	MHZ.KM	----	----	>=800	>=500
Zero dispersion wavelength		nm	1300-1324	>=1302, ≤1322	----	----	>= 1295, ≤1320
Zero dispresion slope		nm	≤0.092	≤0.091	----	----	----
PMD Maximum Individual Fibr			≤0.2	≤0.2	----	----	≤0.11
PMD Design Link Value		Ps(nm2*k m)	≤0.12	≤0.08	----	----	----
Fibre cutoff wavelength λc		nm	>= 1180, ≤1330	>=1180, ≤1330	----	----	----
Cable sutoff wavelength λcc		nm	≤1260	≤1260	----	----	----
MFD	1310nm	um	9.2+/-0.4	9.2+/-0.4	----	----	----
MFD	1550nm	um	10.4+/-0.8	10.4+/-0.8	----	----	----
Numerical Aperture(NA)			----	----	0.200+/ -0.015	0.275+/-0. 015	0.200+/-0 .015
Step(mean of bidirectional measurement)		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
Irregularities over fiber length and point		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10

Dicontinuity
Difference backscatter coefficient		dB/km	≤0.05	≤0.03	≤0.08	≤0.10	≤0.08
Attenuation uniformity		dB/km	≤0.01	≤0.01
Core dimater		um			50+/-1.0	62.5+/-2.5	50+/-1.0
Cladding diameter		um	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1
Cladding non-circularity		%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Coating diameter		um	242+/-7	242+/-7	242+/-7	242+/-7	242+/-7
Coating/chaffinch concentrically error		um	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
Coating non circularity		%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Core/cladding conentricity error		um	≤0.6	≤0.6	≤1.5	≤1.5	≤1.5
Curl(radius)		um	≤4	≤4	----	----	----

LSZH Sheath Bow Type FTTH Drop Cable Four Core Multimode 0
