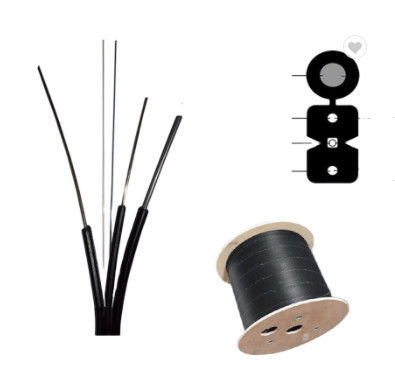

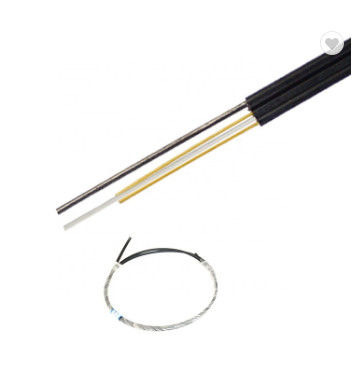

G657A1 Fiber FRP LSZH Sheath FTTH Drop Cable 1 Core Indoor Cabling System

Negotiable
MOQ
Negotiable
Price
G657A1 Fiber FRP LSZH Sheath FTTH Drop Cable 1 Core Indoor Cabling System
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 1 Core FTTH Drop Cable
Application: FTTH,FTTH FTTB FTTX Network,telecommunication,Telecom
Fiber Count: 1core
Color Of Loose Tube: Blue, Orange, Green, Brown
Strength Member: Steel Or FRP
Cable Dimension: 3.1*2.0mm
Cable Weight: 8.2kg/Km
Jacket: LSZH/PVC
Highlight:

LSZH Sheath FTTH Drop Cable

,

G657A1 FTTH Drop Cable

,

FRP LSZH fiber optic drop wire
Basic Infomation
Place of Origin: DONG GUAN CHINA
Brand Name: TW
Certification: SGS ROHS REACH ISO
Model Number: LSZH Sheath FTTH Optical Fiber Cable
Payment & Shipping Terms
Packaging Details: Wooden Drum
Delivery Time: 5working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000KM/mouth
Product Description

G657A1 Fiber FRP LSZH Sheath 1 Core FTTH Drop Cable





Characteristics
1. 250um Fiber.
2. FRP/KFRP.
3. LSZH sheath.

Application
1. Adopted to indoor cabling system.
2. As pigtail of communication equipment.

3. Suitable for floor connection.


Cable construction details :

Items Description
Number of fiber 1core
Fiber type G652D/G657A/Multimode
diameter 250µm
Strength member materia Kevlar yarn
Loose tube diameter 0.9-1.2mm
material /
Outer sheath material PVC/LSZH
diameter 1.6*2.0-3.0*6.0mm
Cable size (Height * width) /
Cable weight 5.5-28.5KG
Installation Temperature range(ºC) -20+60
Operation and transport temperature(ºC) -40+70
Min Bending Radius(mm) Long term 10D
Min Bending
Radius(mm)		 Short term 20D
Min allowable
Tensile Strength(N)		 Long term 40
Min allowable
Tensile Strength(N)		 Short term 80
Crush Load (N/100mm) Long term 200
Crush Load (N/100mm) short term 1000


Standard color of fiber and tube

Fiber style Unit SM
G652		 SM
G652D		 MM
50/125		 MM
62.5/125		 MM
OM3-300
condition nm 1310/1550 1310/1550 850/1300 850/1300 850/1300
attenuation dB/km ≤ ≤ ≤ ≤3.0/1.0 ≤3.0/1.0
0.36/0.23 0.34/0.22 3.0/1.0 ---- ----
Dispresion 1550nm Ps/(nm*km) ---- ≤18 ---- ---- Dispresion
1625nm Ps/(nm*km) ---- ≤22 ---- ----
Bandwith 850nm MHZ.KM ---- ---- >=400 >=160 Bandwith
1300nm MHZ.KM ---- ---- >=800 >=500
Zero dispersion wavelength nm 1300-1324 >=1302,
≤1322		 ---- ---- >= 1295,
≤1320
Zero dispresion slope nm ≤0.092 ≤0.091 ---- ---- ----
PMD Maximum Individual Fibr   ≤0.2 ≤0.2 ---- ---- ≤0.11
PMD Design Link Value Ps(nm2*k
m)		 ≤0.12 ≤0.08 ---- ---- ----
Fibre cutoff wavelength λc nm >= 1180,
≤1330		 >=1180,
≤1330		 ---- ---- ----
Cable sutoff
wavelength λcc		 nm ≤1260 ≤1260 ---- ---- ----
MFD 1310nm um 9.2+/-0.4 9.2+/-0.4 ---- ---- ----
1550nm um 10.4+/-0.8 10.4+/-0.8 ---- ---- ----
Numerical
Aperture(NA)		   ---- ---- 0.200+/
-0.015		 0.275+/-0.
015		 0.200+/-0
.015
Step(mean of bidirectional
measurement)		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
Irregularities over fiber
length and point		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10

Dicontinuity
Difference backscatter
coefficient		 dB/km ≤0.05 ≤0.03 ≤0.08 ≤0.10 ≤0.08
Attenuation uniformity dB/km ≤0.01 ≤0.01
Core dimater um     50+/-1.0 62.5+/-2.5 50+/-1.0
Cladding diameter um 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242+/-7 242+/-7 242+/-7 242+/-7 242+/-7
Coating/chaffinch
concentrically error		 um ≤12.0 ≤12.0 ≤12.0 ≤12.0 ≤12.0
Coating non circularity % ≤6.0 ≤6.0 ≤6.0 ≤6.0 ≤6.0
Core/cladding conentricity error um ≤0.6 ≤0.6 ≤1.5 ≤1.5 ≤1.5
Curl(radius) um ≤4 ≤4 ---- ---- ----



Our advantages:


1. High- integrity enterprise ( 90% regular customers).
2. Good quality with EXW price (A professional manufacturer).
3. Shortest delivery time (1000km FTTH just need 1 day).
4. QC: ISO 9002, ROHS, REACH.
5. MOQ is 1KM.
6. Exclusive testing laboratory costed 3,000,000RMB
7. Free samples provided.
8. Customized.



FAQ



1. who are we?
We are based in Guangdong, China, start from 2009,sell to Mid East(35.00%),South America(13.00%),Domestic Market(13.00%),Southeast Asia(10.00%),South Asia(7.00%),Eastern Europe(3.00%),Africa(3.00%),Eastern Asia(3.00%),Northern Europe(3.00%),North America(2.00%),Oceania(2.00%),Western Europe(2.00%),Central America(2.00%),Southern Europe(2.00%). There are total about 201-300 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Telecommunication Equipment (Fiber Optic Distribution Box,Fiber Optic Cabinet,Fiber Optic Splice Closure,PLC Splitter,Fast Connector)

4. why should you buy from us not from other suppliers?
Our company was originally founded in 1994. We specialized in the manufacture of telecommunication products and have a complete R&D system, advanced production and testing equipments, and a quality assurance system in accordance with the ISO9001 standard.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
