Name: Single Mode Drop Wire Fiber Optic 2 Core Outdoor Self Supporting Easy To Install
Brand: DONGGUAN TW-SCIE CO., LTD.
SKU: GJYXCH/GJYXCFH
Price: 0.04 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Producat Name: 2 Core Fiber Optic Drop Cable

Application: FTTH,FTTH FTTB FTTX Network,telecommunication,Telecom

Fiber: G652D, G657A1, G657A2

Fiber Count: 2 Core

Strength Member: FRP

Outer Jacket: LSZH

Highlight:

Single Drop Wire Fiber Optic 2 Core

Outdoor Drop Wire Fiber Optic 2 Core

Self Supporting 2 core drop cable

Basic Infomation

Place of Origin: China

Brand Name: TW-SCIE

Certification: CE, ROHS, REACH, SGS, ISO

Model Number: GJYXCH/GJYXCFH

Payment & Shipping Terms

Packaging Details: wooden reel

Delivery Time: 15 working days

Payment Terms: L/C, T/T

Gallery

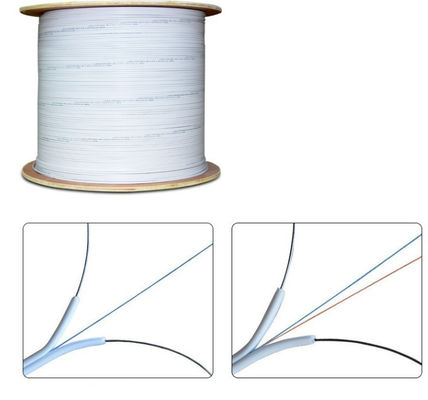

Single Mode Drop Wire Fiber Optic 2 Core Outdoor Self Supporting Easy To Install

Product Description

Easy to Install Single Mode Outdoor Self Supporting 2 core fiber optic drop cable

Specifications

Optical Characteristics

Fiber Type	Attenuation		Overfilled launch Bandwidth	Effective Modal Bandwidth	10GB/S Ethernet link length	Min Bending Radius
Conditions	1310/1550nm	850/1300nm	850/1300nm	850nm	850nm
Unit	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22					16
G657A1	0.36/0.22					10
G657A2	0.36/0.22					7.5
50/125		3.0/1.0	≥500/500			30
62.2/125		3.0/1.0	≥200/500			30
OM3		3.0/1.0	≥1500/500	≥2000	≥300	30
OM4		3.0/1.0	≥3500/500	≥4700	≥550	30
B1-OM3		3.0/1.0	≥1500/500	≥2000	≥300	7.5
B1-OM4		3.0/1.0	≥3500/500	≥4700	≥550	7.5

Structure and technical specification

Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)	Tensile Strength (N/100mm)		Crush Resistance (N/100mm)
Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)	Short Term	Long Term	Short Term	Long Term
1-4	5.2*2.0	18	600	300	2200	1000
6-12	3.0*9.0	27	1200	600	1100	500

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

Product Description

Two core flat drop cable for fiber To The Home (FTTH) application, the cable is constructed with two single mode fibers protected by dielectric strength member made of fiber reinforced plastic (FRP) strength member and LSZH outer jacket.

It is very light in construction and easy to install, generally used for connecting Main distribution frame to consolidation point in home, apartment or offices. Industry standard connectors can be used for direct termination because of standard 250µm fiber size.

Single Mode Drop Wire Fiber Optic 2 Core Outdoor Self Supporting Easy To Install 0

Our Company

Single Mode Drop Wire Fiber Optic 2 Core Outdoor Self Supporting Easy To Install 1

FAQ

1. who are we?
We are based in Guangdong, China, start from 2009,sell to Mid East(35.00%),South America(13.00%),Domestic Market(13.00%),Southeast Asia(10.00%),South Asia(7.00%),Eastern Europe(3.00%),Africa(3.00%),Eastern Asia(3.00%),Northern Europe(3.00%),North America(2.00%),Oceania(2.00%),Western Europe(2.00%),Central America(2.00%),Southern Europe(2.00%). There are total about 201-300 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Telecommunication Equipment (Fiber Optic Distribution Box,Fiber Optic Cabinet,Fiber Optic Splice Closure,PLC Splitter,Fast Connector)

4. why should you buy from us not from other suppliers?
Our company was originally founded in 1994. We specialized in the manufacture of telecommunication products and have a complete R&D system, advanced production and testing equipments, and a quality assurance system in accordance with the ISO9001 standard.
