Name: G657A1 G657A2 Flat FTTH Fiber Optic Cable For Communication
Brand: DONGGUAN TW-SCIE CO., LTD.
SKU: GJYXCH
Price: 0.04 USD
Availability: InStock

G657A1 G657A2 Flat FTTH Fiber Optic Cable For Communication

100km

MOQ

USD 0.04$/m~0.05$/M

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Flat Ftth Fiber Optic Cable

Application: FTTH,FTTH FTTB FTTX Network,OUTDOOR,telecommunication,Telecom

Fiber Type: G657A2

Fiber Count: 1-12,2/4/6/8/12 Core

Jacket: LSZH

Strength Member: FRP,steel Wire/FRP,FRP/KFRP/Steel Wire

Length: 2KM,or As Required,1km Or 2km

Jacket Material: LSZH

Oem: Available,Welcome!!!

Material: LSZH

Highlight:

G657A1 FTTH Fiber Optic Cable

G657A2 FTTH Fiber Optic Cable

G657A2 fiber optic drop wire

Basic Infomation

Place of Origin: China

Brand Name: TW-SCIE / OEM

Certification: IOS9001

Model Number: GJYXCH

Payment & Shipping Terms

Packaging Details: wooden drum / PE drum

Delivery Time: 7-15

Payment Terms: L/C, T/T, Western Union

Supply Ability: 600km / day

Gallery

G657A1 G657A2 Flat FTTH Fiber Optic Cable For Communication

Product Description

G657A1 G657A2 Flat 12 Core FTTH Fiber Optic Cable

Description

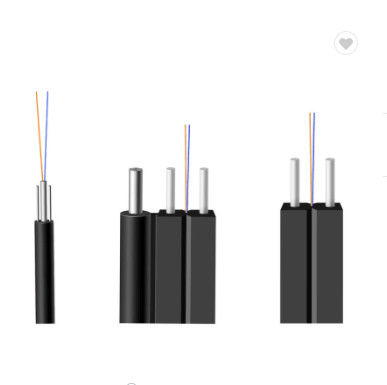

A flat drop cable has a flat appearance and is usually composed of a polyethylene sheath, several fibers and two dielectric strength members to provide high compressive strength. Fiber drop cables usually contain one or two fibers, however, drop cables with fiber counts of up to 12 or more are now available.

Feature:

Two parallel FRP strangth members ensuregood performance of crush resistance to protect the fiber
Simple structure ,light weight and high practicability
Novel flute desig,easily strip and splice ,simplify the installation and maintenance
Low smoke zero halogen and flame reardant sheat

General Specifications:

Cable Type	FTTH outdoor drop fiber optic cable
Fiber Type	SM G652D/ SM G657A1/ SM G657A2
Application	Communication, LAN
Recommended installation methods	href="http://www.sogou.com/link?url=DSOYnZeCC_r8heIrKPKvz3Qa18ZBfitmswmD7WtH01P7GyMFwnDkjLwll08knDbUq56AH-LU1t2wnK9etc1FOG4GGYPn6kr-yfnp3wi1XEluGGn0nqLfow..&query=Gas+blowing+pipe+installation" aerial or duct installation
Temperature Range	-20ºC to 60ºC

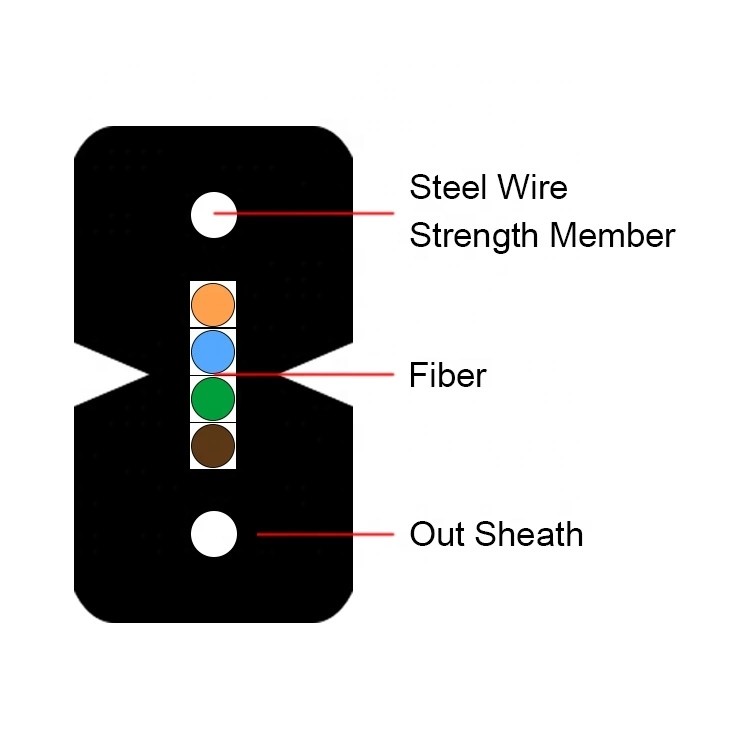

Cable Design:

Item	Description
Model No	GJYXCH4C/GJYXFCH
1. Fiber count	2 Core/4 Core/8Core/
2. Cable Diameter	5.0*2.0mm
3. Cable Weight	21.5KGS/20.0KGS
4. Strength member
-Material	STEEL/FRP
-Diameter	0.45mm
5.Outer Sheath
-Material	LSZH/PVC
6. Sheath marking
-Type of marking	Laser printing
7. Messenger
OD	1.0mm
Material	Steel wire
