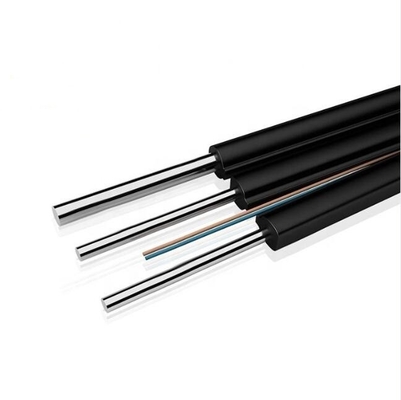

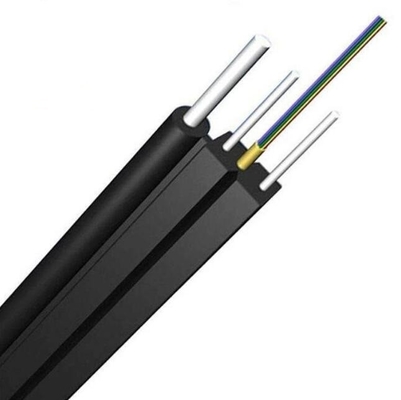

FTTH Drop Cable 2 Core G657A2 Fiber 3 Steel Wire LSZH Jacket Fiber Optic Cable

1KM
MOQ
FTTH Drop Cable 2 Core G657A2 Fiber 3 Steel Wire LSZH Jacket Fiber Optic Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Special Bending Resistance
Cable Diameter: 2.0mm/3.0mm
Connector Side A: Fullaxs Duplex LC
Structure: Bow-type,Flat
Zero Dispersion Slope: ≤0.090ps/(nm2.km)
Central Strength Member: Steel Wire/FRP
Transport Package: Wooden Drum
Life Expectancy: More Than 30 Years
Construction: 2pcs Steels
Cores: 1 Core , 2 Core, 4 Core
Warranty: 20 Years
Cable Color: Black
Jacket Material: LSZH
Fiber Wavelength: ≧1180,≤1330
Fiber Cladding: 9/125μm
Highlight:

LSZH Jacket FTTH Drop Cable

,

3 Steel Wire FTTH Drop Cable

,

2 Core FTTH Drop Cable

Basic Infomation
Place of Origin: Guangdong dongguang
Brand Name: OEM or TW-SICE
Certification: IOS UL SGS RoHs
Model Number: Gjyxch
Payment & Shipping Terms
Packaging Details: Drum
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200km/Day
Product Description
PRODUCT DESCRIPTION

FTTH Drop Cable 2 Core G657A2 Fiber 3 Steel Wire LSZH Jacket Fiber Optic Cable




This FTTH 2 Core Indoor Fiber Optic Cable has been designed for access building cable with good performance and easy installation.


Structure &Properties


1. Good mechanical and environmental characteristics
2. FTTH 2 Core Indoor Fiber Optic Cable 's Flame retardant characteristics meet the requirements of relevant standard
3. The mechanical characteristics meet the requirements of relevant standard
4. Soft, flexible, easy to lay and splice and with big capacity data transmission
5. Meets various requirements of market and clients



Technical Date




ITEMS
UNITS SPECIFICATION
Attenuation dB/km ≤0.4 at 1310nm ≤0.3 at 1550nm
Chromatic Dispersion ps/nm.km ≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm
Zero Dispersion Wavelength nm 1300 ~ 1324
Zero Dispersion Slope ps/nm2.km ≤0.095
Cut-off Wavelength (λcc, 22m of a cabled fiber) nm ≤1260
Mode Field Diameter um 9.2±0.5
Mode Field Concentricity um ≤0.8
Cladding Diameter um 125±1.0
Cladding Non-circularity % ≤1.0
Coating cladding concentricity error um ≤12.5
Coating Diameter um 245±10
Bending loss (Bare fiber) Radius :7.5mm x 1 turn dB ≤0.5 at 1550nm
Proof Test kpsi ≥100



FTTH 2 Core Indoor Shielded Fiber Optic Cable , Fiber Drop Cable Easy To Lay 0


FTTH 2 Core Indoor Shielded Fiber Optic Cable , Fiber Drop Cable Easy To Lay 1





Packing & Shipping

FTTH 2 Core Indoor Shielded Fiber Optic Cable , Fiber Drop Cable Easy To Lay 2

FTTH 2 Core Indoor Shielded Fiber Optic Cable , Fiber Drop Cable Easy To Lay 3



Company Profile



Dongguan TW-SCIE Co., Ltd. has been committed to the production of optical cables for more than 20 years. It is an emerging high-tech enterprise integrating R&D, production, sales and network engineering of optical fiber communication products and has independent import and export rights. Relying on the experience concept of "pursuing innovation, excellence, and establishing an enterprise with integrity", we have gained a large number of loyal customers at home and abroad. Our optical cable products include GYTS, GYXTW series suitable for overhead; self-supporting ADSS, GYXTC8S, GYTC8S series; direct buried GYTA53, GYTY53, GYTA series; and non-metallic optical cables GYFTY, composite Ground wire optical cable OPGW, etc., the diversified optical cable product portfolio enables you to choose products with ease.

FTTH 2 Core Indoor Shielded Fiber Optic Cable , Fiber Drop Cable Easy To Lay 4

FTTH 2 Core Indoor Shielded Fiber Optic Cable , Fiber Drop Cable Easy To Lay 5FTTH 2 Core Indoor Shielded Fiber Optic Cable , Fiber Drop Cable Easy To Lay 6

FTTH 2 Core Indoor Shielded Fiber Optic Cable , Fiber Drop Cable Easy To Lay 7

FTTH 2 Core Indoor Shielded Fiber Optic Cable , Fiber Drop Cable Easy To Lay 8

FTTH 2 Core Indoor Shielded Fiber Optic Cable , Fiber Drop Cable Easy To Lay 9




Our Quality & Service



DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:

1. Consistently meeting for product quality and performance;

2. Timely delivery of products and services to meet our customer's requirements;

3. Ensuring that our people are properly trained so that they are better able to serve our customers.



Please feel free to contact us for cooperation and excellent service.
