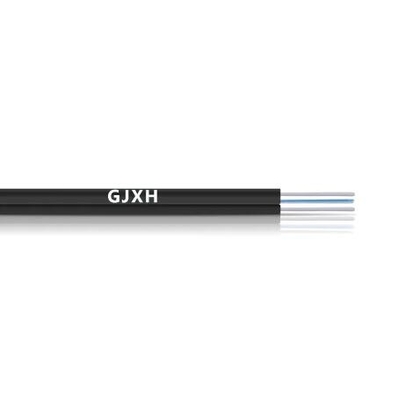

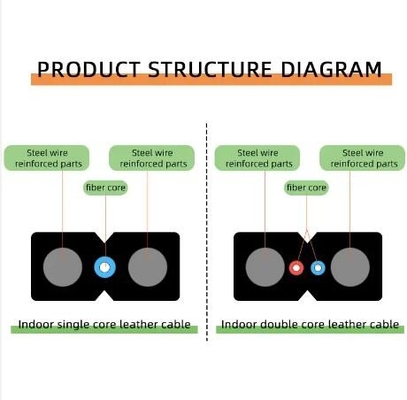

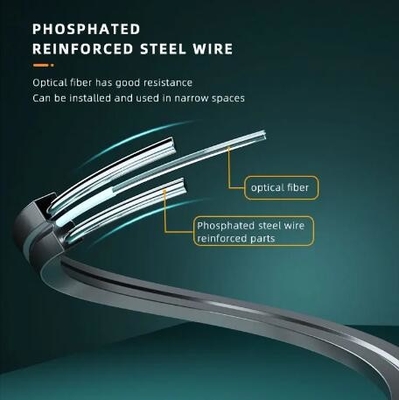

Self-supported flat drop cable. The cable cross section is a fig.8 made a steel wire strength member.
Used in access network or as access cable from outdoor to indoor
in customer premises network.
Used as access building cable in premises distribution system,especially used in indoor or outdoor aerial access cabling.
Compact, soft, flexible, easy to install
Specifications
3.1 Optical Characteristics
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius | |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 16 | ||||
| G657A1 | 0.36/0.22 | 10 | ||||
| G657A2 | 0.36/0.22 | 7.5 | ||||
| 50/125 | 3.0/1.0 | ≥500/500 | 30 | |||
| 62.2/125 | 3.0/1.0 | ≥200/500 | 30 | |||
| OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 | |
| OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 | |
| B1-OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 | |
| B1-OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 | |
3.2 Structure and technical specification
| Fiber Count |
Cable Diameter (mm) |
Cable Weight (kg/km) |
(N/100mm) |
Crush Resistance (N/100mm) |
||
| Short Term | Long Term | Short Term | Long Term | |||
| 1-4 | 5.2*2.0 | 18 | 600 | 300 | 2200 | 1000 |
| 6-12 | 3.0*9.0 | 27 | 1200 | 600 | 1100 | 500 |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.
Q1: Where is your factory ?
A1: Our factory is located in DONGGUAN City, GUANGDONG Province, China.
Q2: How long has your company been doing this?
A2: More than 20 years.We are not only produce fiber optical cable but also produce optical fiber and related tools .
Q3:How about the cable's quality?
A3: Our factory is approved by ISO9001 quality management system and including STARF,CE,CPR,TLC certifications at list.We have a series of euipment and instruments to make sure reliable quality of our products.
Q4: Can you produce cable as our requirements?
A4: Of course .We can supply different types of products according to your requirements with reasonable prices .
Q5:Do you accept the OEM order and how many is the MOQ?
A5:Yes,we warmly welcome your OEM order.To achieve customer's satisfaction,we accept sample order, even one Piece.
