Home /Products/Outdoor Fiber Optic Cable/Customized Communication Single-Mode GYXTW GYTA53 Optic G652D Price Gyxtc8s GYXTY Asu Fiber Cable

Customized Communication Single-Mode GYXTW GYTA53 Optic G652D Price Gyxtc8s GYXTY Asu Fiber Cable

10km
MOQ
Customized Communication Single-Mode GYXTW GYTA53 Optic G652D Price Gyxtc8s GYXTY Asu Fiber Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Telecommunication,Aerial
Fiber Type: G652D
Number Of Conductors: 2
Type: Coaxial
Fiber Count: 2 Core
Color: Black
Construction: Stranded Loose Tube
Jacket Diameter: 9.8-16.1
Steel Wire: 0.7/0.8/1.0mm
Warranty: 3 Year
Jacket Color: Color
Aramid Fibers: Import Or Domestic
Useful: Self-Supporting Aerial Cable
Spam: 100/200/300/400/500m

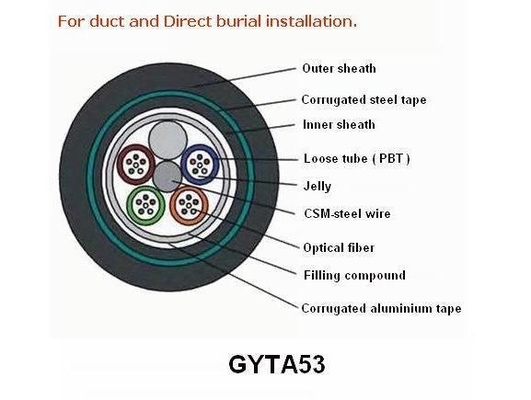

Structure Section: GYTA53
Model: GCYFY
Conductor Material: Copper
Life Time: 25-30 Years
Network: None, None
Package: Wooden Drum 1-4km/drum
Fiber Brand: TW-scie
Jacket: MDPE,LSZH
Product Name: FTTH Indoor Cable,stranded Loose Tube Armored Cable,2core FTTH Single Mode Indoor/outdoor Fiber Optic,Outdoor Optic Fiber Cable
Length: Or As Required
Highlight:

G652D Fiber Cable

,

Customized Communication Fiber Cable

,

GYXTW GYTA53 Fiber Cable
Basic Infomation
Place of Origin: China
Brand Name: OEM
Certification: ISO
Model Number: GYTA53
Payment & Shipping Terms
Payment Terms: L/C, T/T
Product Description

Product Description

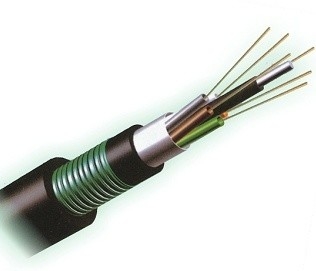

The fibers are positioned in a loose tube made of high modulus plastic and filled with gel. The tube and two FRPs are stranded. The cable core is filled with water blocking yarn. Finally, PE outer jacket or AT outer jacket is completed. One ripcord is applied in the jacket to make the striping easily.


All dielectric structure, resistant to electromagnetic interference
Small diameter , light weight, cost-effective, easy for stripping, splicing, simplified installation and maintenance



Application

Self-supporting Aerial installation especially for electric field

Structure can be customized for different spans.

Product Parameters

Counts 1-12 24
Span 80 M 120M 80 M 120M

Cable Diameter(mm)		 6.6 7.6 7.5 8.2
Weight (Kg/km) 45 62 52 65
Tensile Strength(N) 1500N 2000N 1500N 2000N

Crush Resistance(N/100mm)		 2000N
Bending Radius(mm) Static/Dynamic:10D/20D
Temperature(ºC) Storage /Operation:-40ºC70ºC
