Polish UPC / APC Pigtail Fiber Optic Cable High Temperature Stability

Name: Polish UPC / APC Pigtail Fiber Optic Cable High Temperature Stability
Brand: DONGGUAN TW-SCIE CO., LTD.
SKU: TW-PT-SC/APC
Price: 184.02 USD
Availability: InStock

Negotiable

MOQ

Negotiable

Price

Polish UPC / APC Pigtail Fiber Optic Cable High Temperature Stability

Features Gallery Product Description Request A Quote

Features

Specifications

Polish: UPC,APC

Fiber Type: SM/MM

Connector: SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO

Cord Type: Simplex ,Duplex

Cable Jacket: PVC,LSZH,OFNR,OFNP

Highlight:

pigtail fiber optic cable

fiber optic components

Basic Infomation

Place of Origin: CHINA

Brand Name: OEM

Certification: CE,ROHS,REACH

Model Number: TW-PT-SC/APC

Payment & Shipping Terms

Packaging Details: 1PC/PE BAG

Delivery Time: 15 Working Days

Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability: 5000PCS PER DAY

Gallery

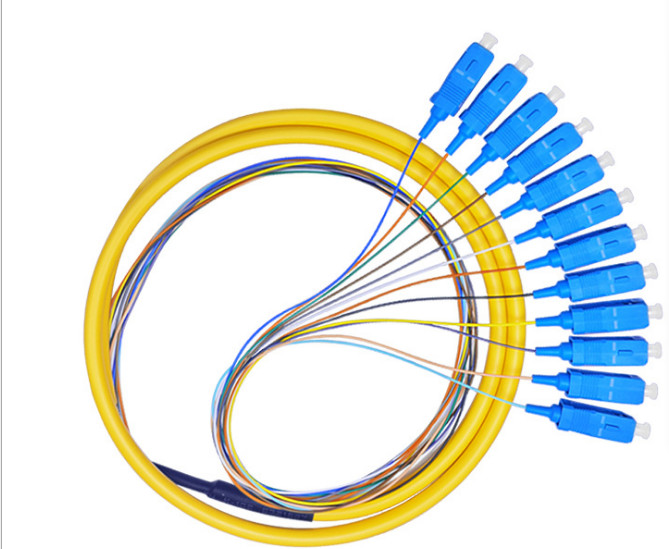

Polish UPC / APC Pigtail Fiber Optic Cable High Temperature Stability

Product Description

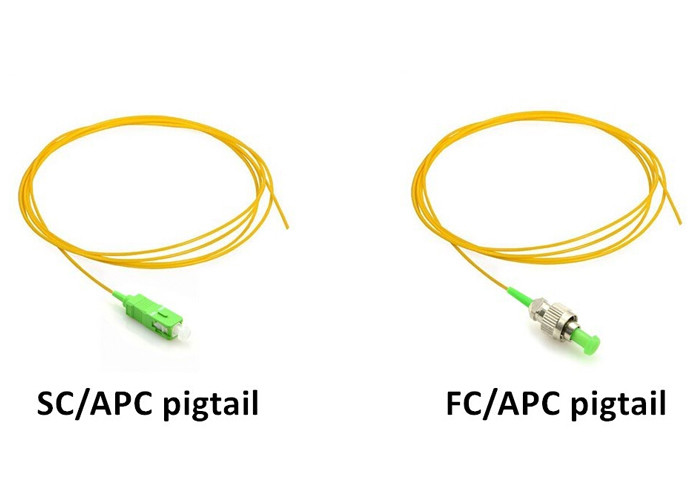

Optical Fiber Pigtail

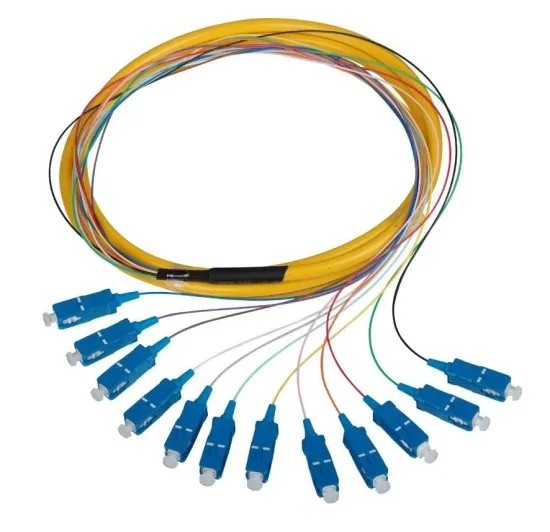

Polish UPC / APC Pigtail Fiber Optic Cable High Temperature Stability 0

Description

An optical fiber pigtail is a length of fiber with a connector at one end, used for connecting the beam path. It can have various types of connectors and three types of polished fiber end-faces (PC, UPC, and APC). Our advanced techniques and equipment ensure high-quality mass production

This product has the following features:

Low insertion loss

High return loss

Good repeatability

Good exchangeability

High temperature stability

Applications include optical fiber communication systems

a.Optic-fiber data communications are involved in various applications.

b. Various applications can utilize optic-fiber data communications.

c. Different scenarios can benefit from optic-fiber access networks.

d. Multiple applications exist for LAN optic-fiber sensors.

Parameters

Mode	Single mode		Multi-mode
Polish	UPC	APC	PC
Insertion Loss	≤0.2dB	≤0.3dB	≤0.2dB
Return Loss	≥55dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Salt Spray	≤0.1dB
Repeatability	≤0.1dB (1000 times)
Vibration	≤0.2dB (550Hz 1.5mm)
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)
Apex Offset	0μm ~ 50μm
Radius of Curvature	7mm ~ 25mm
Standards-Compliant	ROHS,IEC and GR-326

Fiber type	Single mode:9/125-G652D 9/125-G657
Fiber type	Multi-mode: 50/125-OM2 62.5/125-OM1 50/125-OM3
Fiber	Corning,China Fiber,other
Connector	SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others
Polishing	PC,UPC,APC,MTRJ Male connector,MTRJ female connector
Cord type	Simplex ,Duplex
Cable diameter	0.9mm ,2.0mm,1.8mm 3.0mm
Cable jacket	PVC,LSZH,OFNR,OFNP
length(M)	0.5m,1m,3M,5m,10m,20m,200m or other

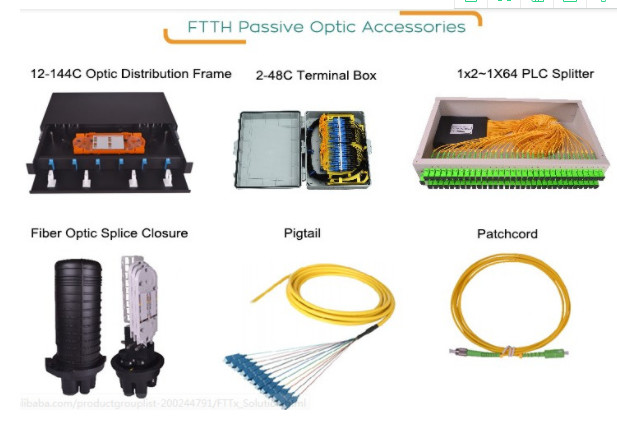

Appearance
