Fiber Optic Pigtail For Optical Cable Connector SC / UPC

1. Description

Fiber optic Pigtail is a fiber optic cable capped at one with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment.

Fiber optic cable is available in both single mode and multimode versions,the SC connector has a zirconia ceramic ferrule with pre-polished UPC profile and convex spherical end.

These end-face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability.

• 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);
• 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);
• Excently qualified standard PC, APC, UPC, polishing
• Simplex and duplex connector available
• High precision of mechanical dimensions
• Good exchange ability and good durability

1.1 Application

• Optical System Access Network
• Telecommunications networks
• Broadband/CATV networks
• Data communications networks, including high-bandwidth equipment

2. Features

• Improves and simplifies fiber routing
• Decreases fiber management space
• OEM or customized for special applications
• Low insertion loss and reflectance
• High Density
• Snap-In cassette panel for easy installation, removal and expansion

3. Specification

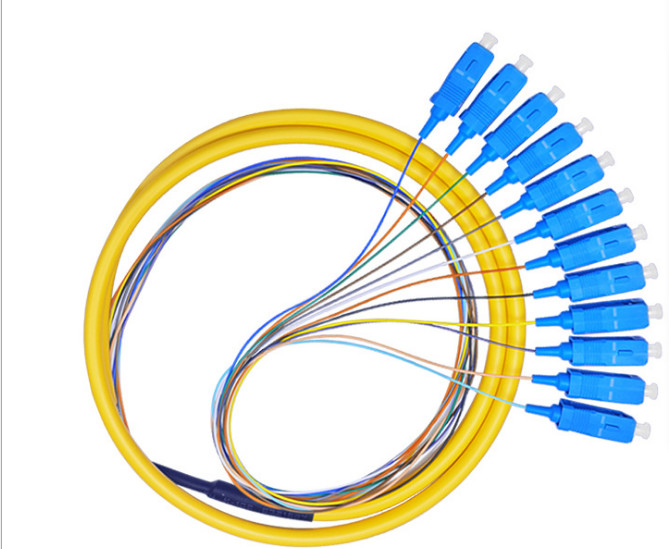

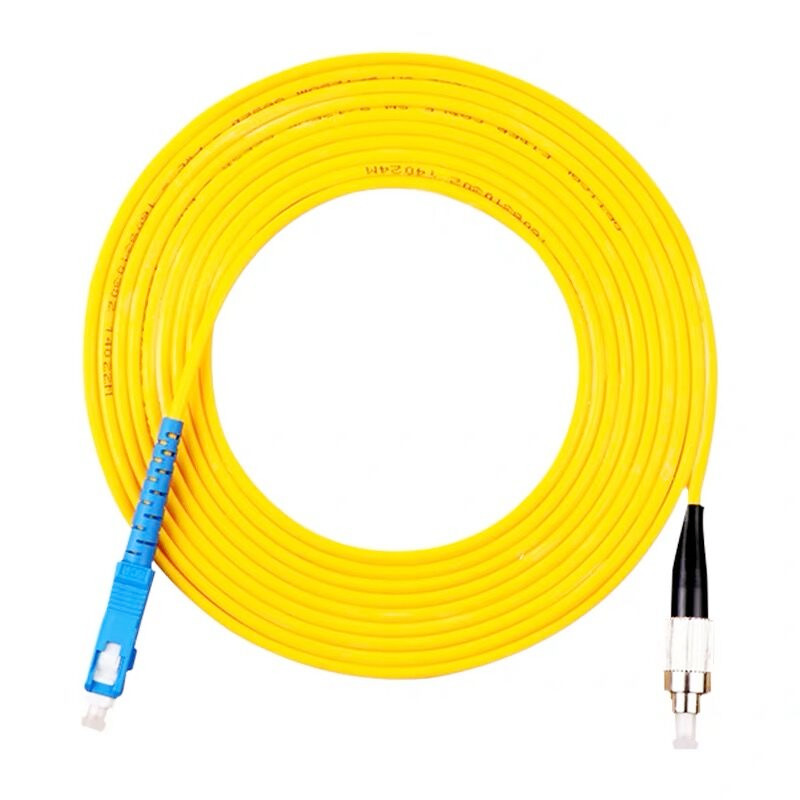

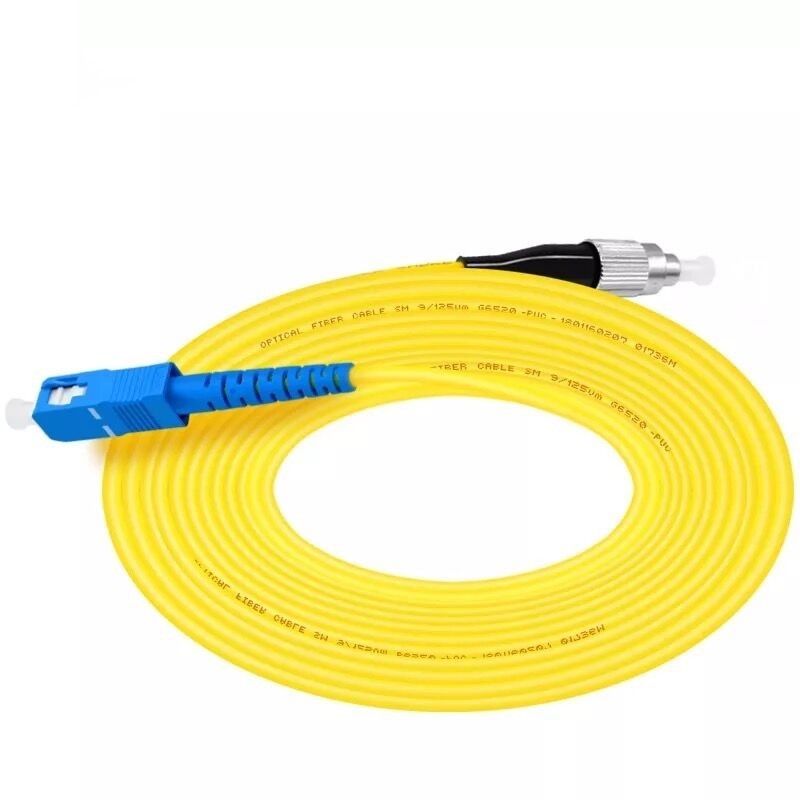

4. Prodcut Picture

5.Packing and Shipping
Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
