Good In Exchange Fiber Optic Patch Pigtail , Fiber Pigtail Connector LC / UPC

Negotiable

MOQ

Negotiable

Price

LC/UPC Fiber Optic Pigtail

The LC pigtail fiber optic cable has connectors on one end for fast and easy connection to CATV, optical switches, or other telecom equipment. It's available in single mode and multimode versions, and features an LC connector with a zirconia ceramic ferrule, pre-polished PC profile, and convex spherical end.

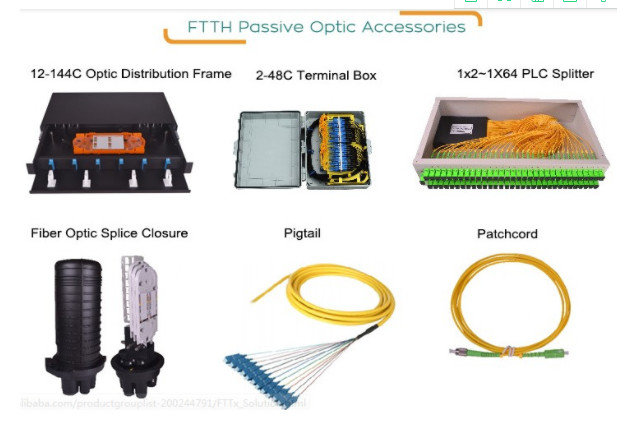

Good In Exchange Fiber Optic Patch Pigtail , Fiber Pigtail Connector LC / UPC 1

By allowing for faster polishing, low back reflection, and optical loss, these end-face types ensure maximum repeatability.

Features

Low insertion loss and back reflection loss

Ferrule end surface is pre-domed

Excellent mechanical endurance

Good in repeatability

Good in exchange

Applications

Telecommunications

CATV, LAN, MAN, WAN, Test & Measurement

Military industry

Medical

Parameter

Parameter	Unit		Standard & Requirement
Parameter	Unit
		PC(SM)	UPC(SM)		APC(SM)	PC(MM)
Insertion Loss (Typical)	dB	≤0.3	≤0.3		≤0.2	≤0.2
Return Loss	dB	≥45	≥50		≥60	≥35
Mechanical Endurance (500T)	dB			≤0.2
Exchangeability	dB			≤0.2
Durability	Time		＞500
Vibration	dB			≤0.2
Operating Temperature	℃		﹣40 ～﹢75
Storage Temperature	℃		﹣45 ～﹢85
Cable Diameter	mm		Ф2.0mm± 2%

Good In Exchange Fiber Optic Patch Pigtail , Fiber Pigtail Connector LC / UPC 3

Tel :

18822950698

Fax :

86-0755-89979963

		ITEM		CONSTRUCTION
FIBER TYPE				Single mode: G652, Multimode: G651
MODE	FIELD	DIAMETER
@1310NM				9.0±0.5μm
CLADDING DIAMETER				125±1μm
CORE	CONCENTRICITY			0.6μm
ERROR				0.6μm
ERROR				≦
CLADDING			1.0%
NON-CIRCULARITY			1.0%
NON-CIRCULARITY				≦
PRIMARY		COATING
DIAMETER				250±15μm
COATING-CLADDING
CONCENTRICITY ERROR				≦12.5μm
FIBER CURL RADIUS				4m
FIBER CURL RADIUS				≧
				LSZH or better (OFNR-rated). The non-circular < 2%. Yellow color. printed cables
Casing				information, type, length,
The bend R				3 cm
				Installation: ≥ 200 N

Greatest tension				Operating: ≥ 200 N
The force mashed				550 N/cm
