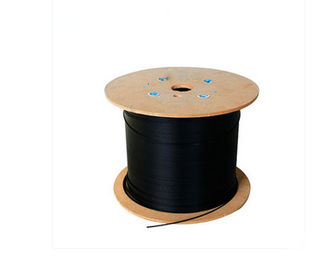

LSZH/PVC Jacket 1 2 4 Core Single Mode GJXH Flex Durable Easy Installation FTTH Drop Cable
This FTTH Indoor Fiber Optic Cable has been designed for access building cable with good performance and easy installation.
Applications
1.Indoor wiring system
2.FTTH, terminal system
3.Indoor shaft, building wiring
Properties
1. Bow-tie type cross-section design, LSZH or PVC jacket
2. Two parallel steel as strength member to protect the fiber and provide adequate tension and pressure
3. Flex durable fiber to provide greater bandwidtj and enhance network transmission characteristics
4. Easy pleeled off, light weight, small size, unique groove design, easy for maintance
Technical Date
ITEMS |
UNITS | SPECIFICATION |
| Attenuation | dB/km | ≤0.4 at 1310nm ≤0.3 at 1550nm |
| Chromatic Dispersion | ps/nm.km | ≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm |
| Zero Dispersion Wavelength | nm | 1300 ~ 1324 |
| Zero Dispersion Slope | ps/nm2.km | ≤0.095 |
| Cut-off Wavelength (λcc, 22m of a cabled fiber) | nm | ≤1260 |
| Mode Field Diameter | um | 9.2±0.5 |
| Mode Field Concentricity | um | ≤0.8 |
| Cladding Diameter | um | 125±1.0 |
| Cladding Non-circularity | % | ≤1.0 |
| Coating cladding concentricity error | um | ≤12.5 |
| Coating Diameter | um | 245±10 |
| Bending loss (Bare fiber) Radius :7.5mm x 1 turn | dB | ≤0.5 at 1550nm |
| Proof Test | kpsi | ≥100 |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.
