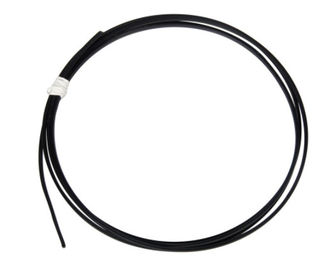

China PVC / LSZH Jacket 2 Core Fiber Optic Drop Cable , Fiber Optic Network Cable Easy To Lay

Negotiable
MOQ
Negotiable
Price
China PVC / LSZH Jacket 2 Core Fiber Optic Drop Cable , Fiber Optic Network Cable Easy To Lay
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name Of Fiber: Corning ,Yofc,Draka, Fujikura...as Requirement
Color Of Loose Tube: Blue, Orange, Green, Brown
Strength Member: Steel Or FRP
Jacket Color: Black, White
Installation Style: Indoor & Outdoor Self-Support Drop Cable
Cable Dimension: 3.1*2.0mm
Cable Weight: 8.2kg/Km
Highlight:

fiber optic drop cable

,

fiber optic indoor cable

,

LSZH Fiber Optic Drop Cable

Basic Infomation
Place of Origin: DONG GUAN CHINA
Brand Name: TW
Certification: SGS ROHS REACH ISO
Model Number: Indoor FTTH
Payment & Shipping Terms
Packaging Details: Wooden Drum
Delivery Time: 5working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000KM/mouth
Product Description

FTTH Drop Cable with PVC / LSZH Jacket, Self-Supporting Fiber Optic Cable




This FTTH 2 Core Indoor Fiber Optic Cable has been designed for access building cable with good performance and easy installation.



Properties


1. Good mechanical and environmental characteristics
2. FTTH 2 Core Indoor Fiber Optic Cable 's Flame retardant characteristics meet the requirements of relevant standard
3. The mechanical characteristics meet the requirements of relevant standard
4. Soft, flexible, easy to lay and splice and with big capacity data transmission
5. Meets various requirements of market and clients




Technical Date




ITEMS
UNITS SPECIFICATION
Attenuation dB/km ≤0.4 at 1310nm ≤0.3 at 1550nm
Chromatic Dispersion ps/nm.km ≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm
Zero Dispersion Wavelength nm 1300 ~ 1324
Zero Dispersion Slope ps/nm2.km ≤0.095
Cut-off Wavelength (λcc, 22m of a cabled fiber) nm ≤1260
Mode Field Diameter um 9.2±0.5
Mode Field Concentricity um ≤0.8
Cladding Diameter um 125±1.0
Cladding Non-circularity % ≤1.0
Coating cladding concentricity error um ≤12.5
Coating Diameter um 245±10
Bending loss (Bare fiber) Radius :7.5mm x 1 turn dB ≤0.5 at 1550nm
Proof Test kpsi ≥100
