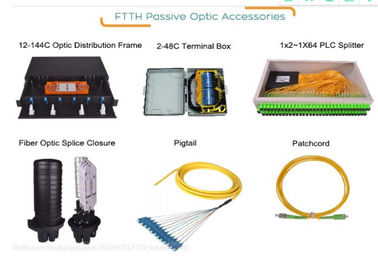

Optical Fiber Pigtail
1. Description
Optical Fiber Pigtail is a length of optical fiber with one end adding connectors to connect beam path. Pigtail is a length of fiber permanently attached connector only at one end. Pigtail assembled with various types of connectors (such as FC, SC, ST, LC, MU, MTRJ etc.) There are three kinds of polished fiber end-face: PC, UPC and APC .we employ advanced technique and equipment to manufacture so as to ensure the high quality of mass production.
2. Features
a. Low Insertion Loss
b. High Return Loss
c. Good Repeatability
d. Good Exchangeability
e. High Temperature Stability
3. Applications
a. Optical Fiber Communication Systems
b. Optic-fiber Data Communications
c. Optic-fiber Data Communications
d. Optic-fiber Access Networks
e. LAN Optic-fiber Sensors
4. Parameters
| Mode | Single mode | Multi-mode | |
| Polish | UPC | APC | PC |
| Insertion Loss | ≤0.2dB | ≤0.3dB | ≤0.2dB |
| Return Loss | ≥55dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB | ||
| Salt Spray | ≤0.1dB | ||
| Repeatability | ≤0.1dB (1000 times) | ||
| Vibration | ≤0.2dB (550Hz 1.5mm) | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||
| Apex Offset | 0μm ~ 50μm | ||
| Radius of Curvature | 7mm ~ 25mm | ||
| Standards-Compliant | ROHS,IEC and GR-326 | ||
| Fiber type | Single mode:9/125-G652D 9/125-G657 |
| Multi-mode: 50/125-OM2 62.5/125-OM1 50/125-OM3 |
|
| Fiber | Corning,China Fiber,other |
| Connector | SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others |
| Polishing | PC,UPC,APC,MTRJ Male connector,MTRJ female connector |
| Cord type | Simplex ,Duplex |
| Cable diameter | 0.9mm ,2.0mm,1.8mm 3.0mm |
| Cable jacket | PVC,LSZH,OFNR,OFNP |
| length(M) | 0.5m,1m,3M,5m,10m,20m,200m or other |
