GYTS / GYTS53 armored steel tape for Fiber Optic Cable for Duct and Aerial

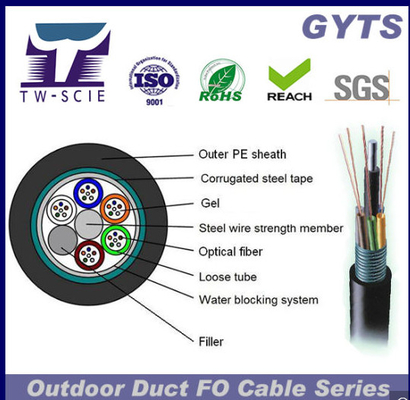

Structure characters
Metallic strengthen member
Single coated PE corrugated steel tape under PE sheath
Properties
Armored steel tape providing maximum ,anti-crush property.
Bullet resistance performance
Recommended laying methods
Aerial, Duct
Applicable fields
Long distance communication and LAN
Technical Data
| Fiber range |
Cable outer diameter |
Cable weight |
Min.bending radius |
Allowable tesion(N) |
Max.crus loading force(N/1000mm) |
| Static |
Dynamic |
Short term |
Long term |
Short term |
Long term |
| 2-30 |
9.8 |
115 |
| 32-36 |
10.6 |
140 |
| 38-60 |
11.0 |
140 |
10 times cable diameter |
20times cable diameter |
1500 |
600 |
1000 |
300 |
| 62-72 |
11.6 |
165 |
| 74-96 |
13.2 |
205 |
| 98-120 |
14.7 |
245 |
| 122-144 |
16.1 |
285 |
| 146-216 |
16.6 |
300 |
| 218-240 |
19.8 |
395 |
| 242-288 |
22.0 |
470 |
Packing &Delivery&Payment&FAQ
1) Length: 3000m/roll, other length is available according to clients request.
2) Packing: wooden drum
3) Other packing available according to client's request
Delivery Detail: 7-15 days after receiving 30% T/T or L/C
Packaging Details:All of our fiber optic cable package are with export wooden drum. Indoor FTTH cable's wooden dimension is 50x50x32cm, delivery length 3km/drum, Outdoor fiber optic cable's wooden dimension is 100cm*73cm*73cm, 0.54CBM, can be load about 44 drums for a 20GP.
Also accept custom cable drum from customers. welcome to contact us!
Certification
Our products strictly adhere to ISO9001, CE and ROHS international standards,Certificate: UL/CE/ROHS/SGS/ISO9001
