corning armored fiber optic cable Black Outer Sheath GYXTW factory type power telecommuniction

1 KM
MOQ
usd0.15/meter
Price
corning armored fiber optic cable Black Outer Sheath GYXTW factory type power telecommuniction
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Count: 2-36 Core
Fiber Type: G652D, Single Mode, OM3
Loose Tube Material: PBT Or Jelly
Outer Sheath Material: MDPE / HDPE
Outer Sheath Color: Black
Single Armour Material: Corrugated Aluminium Tape
Waterblocking Material: Water Blocking Tape Or Filling Compound
Brand Name Of Fiber: Corning, Yofc, Draka, Fujikura
Installation Methods: Duct & Burial
Operating Temperature: -40 Degree ~ +60 Degree
Highlight:

GYXTW Outdoor Armoured Fiber Optic Cable

,

10.2mm Outdoor Armoured Fiber Optic Cable

,

8.9mm armoured ofc cable
Basic Infomation
Place of Origin: DongGuan TW
Brand Name: TW-SCIE
Certification: ROHS REACH SGS ISO
Model Number: GYXTW
Payment & Shipping Terms
Packaging Details: Drum
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 km per day
Product Description

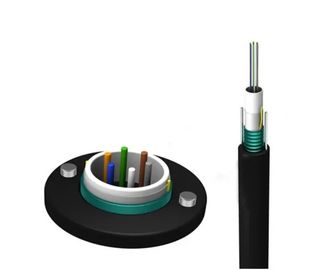

corning armored fiber optic cable Black Outer Sheath GYXTW factory type power telecommuniction 0

12/24 Core Single/Multi Mold Outdoor Armoured Aerial Fiber Optic/Optical Cable (GYXTW)

corning armored fiber optic cable Black Outer Sheath GYXTW factory type power telecommuniction 1

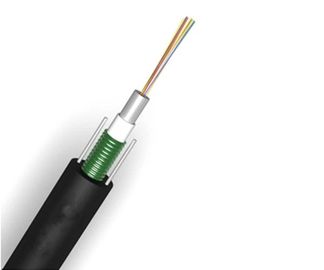

corning armored fiber optic cable Black Outer Sheath GYXTW factory type power telecommuniction 2

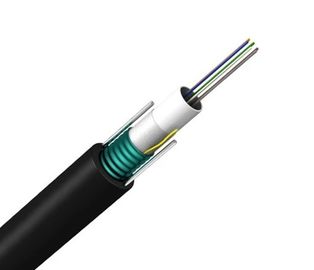

corning armored fiber optic cable Black Outer Sheath GYXTW factory type power telecommuniction 3

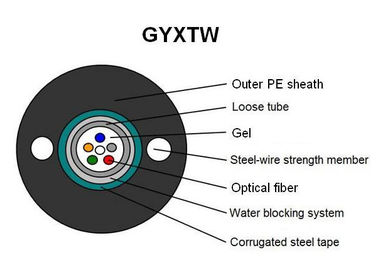

Structure

The central loose tube fiber optic cable is a structure in which the optical fiber is located in the center of the optical cable and is filled with compound and PE jacket outside, reinforced by double steel wires.



Feature

1. Double wire as strain member provides excellent strain performance
2. Excellent mechanical performance
3. Easy to installation and operation
4. Small outer diameter, lightweight, tight structure, excellent bending property
5. Good water-resistant properties



Specification

Description
The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· PSP enhancing moisture-proof
· Two parallel steel wires ensure tensile strength
· Small diameter, light weight and friendly installation
· Long delivery length
Standards
GYXTW cable complies with Standard YD/T 769-2003.


Optical Characteristics
  G.652 G.655 50/125μm 62.5/125μm
Attenuation
(+20ºC)		 @850nm     ≤3.0 dB/km ≤3.0 dB/km
@1300nm     ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm     ≥500 MHz·km ≥200 MHz·km
@1300nm     ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture     0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm
Technical Parameters
Cable Type Fiber Count Cable Diameter
mm		 Cable Weight kg/km Tensile Strength
Long/Short Term N		 Crush Resistance
Long/Short Term
N/100mm		 Bending Radius
Static
/Dynamic
mm
GYXS/GYXTW-2~12 2~12 10.0 105 600/1500 300/1000 10D/20D
GYXS/GY XTW-2~12 2~12 10.6 124 1000/3000 1000/3000 10D/20D
GYXS/GY XTW-14~24 14~24 12.5 149 1000/3000 1000/3000 10D/20D
GYXS/GY XTW-26~36 26~36 14.0 190 1000/3000 1000/3000 10D/20D
GYXS/GY XTW-38~48 38~48 15.0 216 1000/3000 1000/3000 10D/20D
Storage/Operating Temperature : -40ºC to + 70ºC




Optic Cable Technical data
Fiber Num. Outer diameter (mm) Weight (kg/km) Min.Bending radius(mm) Tension (N) Crash loading (N/100mm)
Static Dynamic Short term Long term Short term Long term
2-12 8.9 90 10 times O.D. 20 times O.D. 1500 600 1000 300
14-24 10.2 110





Application

Aerial & Duct
