36/72/96 Core Armoured Duct Fiber Optical Fiber Cable GYTS
2-288 Core Optical Fiber Cable including outdoor 2-288 Core Optical Fiber Cable, indoor 2-288 Core Optical Fiber Cable, ftth 2-288 Core Optical Fiber Cable.
2-288 Core Optical Fiber Cable Certificate including REACH,ISO9001, SGS, RoHS. 2-288 Core Optical Fiber Cable capacibility 300km/day. We have varity of 2-288 Core Optical Fiber Cable modules, accept custom and supply OEM, ODM services. We have strong sales team, 24 hours supply consult and quotation for you.
GYTS optic fiber cable Technology Specification
| Cable Count |
Out sheath |
Weight |
Minimum allowable Tensile Strength |
minimum allowable Crush Load |
Minimum Bending Radius |
Storage |
| |
Diameter |
|
(N) |
|
(N/100mm) |
(MM) |
|
temperature |
| |
(MM) |
(KG) |
short term |
long term |
short term |
long term |
short term |
long term |
(°C) |
| 2-60 |
9.8 |
116 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-20+60 |
| 62-72 |
10.5 |
146 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-20+60 |
| 74-96 |
12.8 |
174 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-20+60 |
| 98-120 |
14.5 |
209 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-20+60 |
| 122-216 |
15.5 |
271 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-20+60 |
| GYTS optic fiber cable Optical Characteristics: : |
| Fiber Sort |
Multimode |
G.651 |
A1a:50/125 |
Graded-index fiber |
| |
|
A1b:62.5/125 |
| Singlemode |
G.652(A,B,C) |
B1.1:Conventional fiber |
| G.652D |
|
B2: Zero dispersion shifted |
| G.655 |
|
B1.2 :Cut-off wavelength shifted |
| G.657(A1,A2 ,B3) |
B4: Main technical data for positive |
| dispersion shifted single-mode fiber |

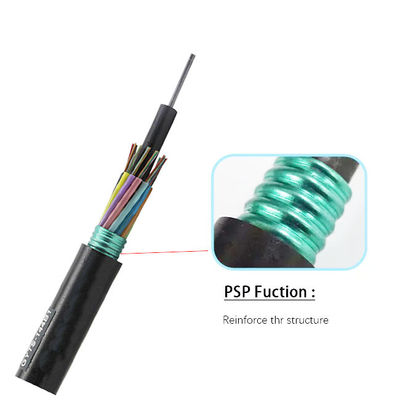

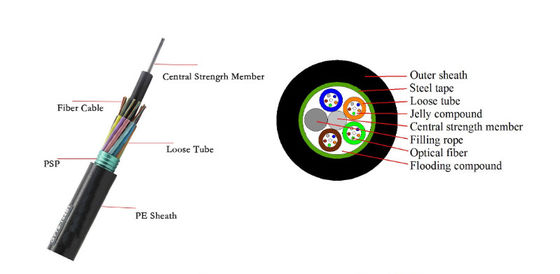

GYTS Fiber Optic Cable Details
GYTS 2-288 Core Optical Fiber Cable Competitive Advantages
1.OEM fiber optic cable manufacturer
2. Fiber brand : YOFC, CORNING,FUJIKURA
3.Quality certification :ISO9001.ROSH.REACH
4.Cooperate with Vietnam telecom, Thai telecom, Singapore telecom, Dubai telecom and other big projects
5.Tw-scie known as the fiber optic cable manufacturer for the excellent products quality, competitive prices , fast delivery and good service.
