PE Jacket Single Mode G652D Fiber Optic Cable Unitube Type GYXTW

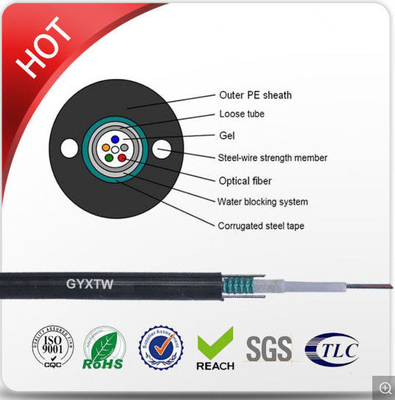

The optical fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
Characteristics
1.Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.Special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility
5.PSP enhancing moisture-proof
6.Two parallel steel wires ensure tensile strength
7.Small diameter, light weight and friendly installation
8.Long delivery length
Technical data
| Fiber Num. |
Outer diameter (mm) |
Weight (kg/km) |
Min.Bending radius(mm) |
Tension (N) |
Crash loading (N/100mm) |
| Static |
Dynamic |
Short term |
Long term |
Short term |
Long term |
| 2-12 |
8.9 |
90 |
10 times O.D. |
20 times O.D. |
1500 |
600 |
1000 |
300 |
| 14-24 |
10.2 |
110 |
| |
G.652 |
G.655 |
50/125μm |
62.5/125μm |
Attenuation
(+20ºC) |
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
| @1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
| @1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
|
|
| @1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|
|
| Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz·km |
≥200 MHz·km |
| @1300nm |
|
|
≥1000 MHz·km |
≥600 MHz·km |
| Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
| Cable Cut-off Wavelengthλcc |
≤1260nm |
≤1480nm |
|
|
|
| |
| Cable Type |
Fiber Count |
Cable Diameter
mm |
Cable Weight kg/km |
Tensile Strength
Long/Short Term N |
Crush Resistance
Long/Short Term
N/100mm |
Bending Radius
Static
/Dynamic
mm |
| GYXS/GYXTW-2~12 |
2~12 |
10.0 |
105 |
600/1500 |
300/1000 |
10D/20D |
| GYXS/GY XTW-2~12 |
2~12 |
10.6 |
124 |
1000/3000 |
1000/3000 |
10D/20D |
| GYXS/GY XTW-14~24 |
14~24 |
12.5 |
149 |
1000/3000 |
1000/3000 |
10D/20D |
| GYXS/GY XTW-26~36 |
26~36 |
14.0 |
190 |
1000/3000 |
1000/3000 |
10D/20D |
| GYXS/GY XTW-38~48 |
38~48 |
15.0 |
216 |
1000/3000 |
1000/3000 |
10D/20D |
|
| Storage/Operating Temperature : -40ºC to + 70ºC |
