Description

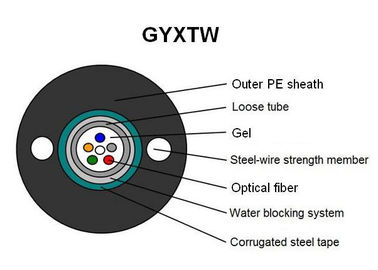

Loose tube with 250μm fibers, filled with water-resistant compound and wrapped with PSP layer longitudinally. Water-blocking material applied between PSP and tube for compactness. Cable has parallel steel wires and PE sheath.
Characteristics
Cable features: good mechanical and temperature performance, hydrolysis-resistant loose tube with high strength, critical fiber protection, crush resistance, flexibility, moisture-proofing PSP, parallel steel wires for strength, small diameter and lightweight for easy installation, and long delivery lengths.
Standards
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation (+20ºC) |
@850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelengthλcc | ≤1260nm | ≤1480nm | |||
Optical Characteristics |
||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Technical Parameters | ||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage/Operating Temperature : -40ºC to + 70ºC | ||||||||||||||||||||||||||||||||||||||||||||||||||
Optic Cable Technical data |
||||||||
| Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Min.Bending radius(mm) | Tension (N) | Crash loading (N/100mm) | |||
| Static | Dynamic | Short term | Long term | Short term | Long term | |||
| 2-12 | 8.9 | 90 | 10 times O.D. | 20 times O.D. | 1500 | 600 | 1000 | 300 |
| 14-24 | 10.2 | 110 | ||||||
