GYTS 48 Core Multi Core SM Armoured Optical Fiber Cable

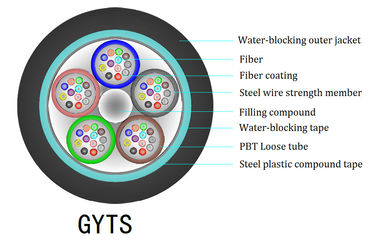

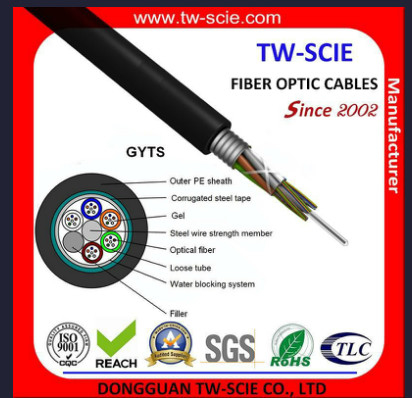

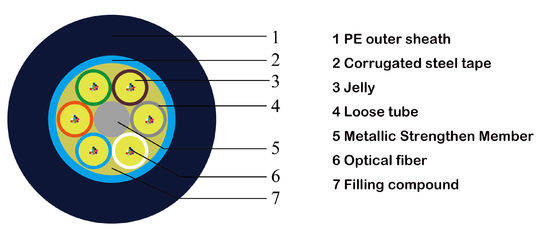

The fibers,250μmm,are position in a loose tube made of a high modulus plastic.The tube are filled with a water resistant filling compound.A steel wire,sometimes sheathed with ployethylene(PE) for cable with high fiber count,locates in the center of core as a metallic strength member.
Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.The PSP is longitudinally applied over the cable core,which is filled with filling compound to protect it from water ingress,the cable is completed with a PE sheath.
Applicable fields
1.Aerial / Duct
2.Connecting communication equipments
3.Multi-cores wiring system in data center
Technical Data
| Fiber range |
Cable outer diameter |
Cable weight |
Min.bending radius |
Allowable tesion(N) |
Max.crus loading force(N/1000mm) |
| Static |
Dynamic |
Short term |
Long term |
Short term |
Long term |
| 2-30 |
9.8 |
115 |
| 32-36 |
10.6 |
140 |
| 38-60 |
11.0 |
140 |
10 times cable diameter |
20times cable diameter |
1500 |
600 |
1000 |
300 |
| 62-72 |
11.6 |
165 |
| 74-96 |
13.2 |
205 |
| 98-120 |
14.7 |
245 |
| 122-144 |
16.1 |
285 |
| 146-216 |
16.6 |
300 |
| 218-240 |
19.8 |
395 |
| 242-288 |
22.0 |
470 |
Packing &delivery
1.Length: 3000m/roll, other length is available according to clients request.
2.Packing: wooden drum
3.Other packing available according to client's request
4.Delivery Detail: 7-15 days after receiving 30% T/T or L/C
