Name: GYTC8s 36 Core Steel Armored Fiber Optic Cable direct buried fiber optic cable used in telecommuniction
Brand: DONGGUAN TW-SCIE CO., LTD.
SKU: GYTC8s
Price: 0.15 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

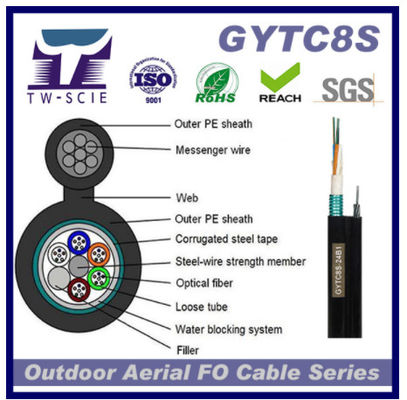

Structure Section: "8" Figure Cross Section

Brand Name Of Fiber: Corning, Yofc, Draka, Fujikura

Outer Sheath Material: MDPE / HDPE

Loose Tube Material: PBT Or Jelly

Single Armour Material: Corrugated Aluminium Tape

Waterblocking Material: Water Blocking Tape Or Filling Compound

Outer Sheath Color: Black

Installation Methods: Self-Support Aerial

Operating Temperature: -40 Degree ~ +60 Degree

Highlight:

GYTC8s Steel Armored Fiber Optic Cable

36 Core Steel Armored Fiber Optic Cable

GYTC8s ofc armoured cable

Basic Infomation

Place of Origin: DongGuan TW

Brand Name: TW-SCIE

Certification: ROHS REACH SGS ISO

Model Number: GYTC8s

Payment & Shipping Terms

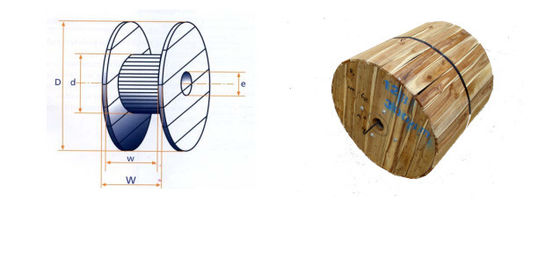

Packaging Details: Customize

Delivery Time: one week

Payment Terms: L/C, T/T, Western Union,MoneyGram

Supply Ability: 200km/Day

Gallery

GYTC8s 36 Core Steel Armored Fiber Optic Cable direct buried fiber optic cable used in telecommuniction

Product Description

Outdoor Self-Support 36Core Fiber Optic Cable GYTC8s

Application:
☆.Adopted to outdoor distribution.

☆.Suitable for aerial duct and buried method.
☆.Long distance and local area network communication.

Characteristics:

☆.Stainless steel or gaivanized steel self-supporting.
☆.Excellet mechanical and environmental performance.
☆.Fiber count: 2-24 cores.

Fiber Allocation Scheme

Fiber number	Tube number	Fiber per tube	Fiber type
2	1	2 F/Tube	SM G652D MM 50/125 MM 62.5/125
4	1	4 F/Tube
6	1	6 F/Tube
8	1	8 F/Tube
12	1	12 F/Tube
24	1	24 F/ Tube

Cable Construction Details

Items		Description
Number of fiber		2 cores to 24cores
Connector strength member	Material	Galvanized steel wire
Connector strength member	diameter	1.2 mm
Loose tube	material	PBT
Loose tube	diameter	Ф2.0-2.8
Cable filling	material	Cable filling compound
Outer sheath	material	HDPE
Outer sheath	diameter	1.7±0.2mm

Cable Mechanical Characteristic

Items		Cable diameter	Weight
2 cores to 24 cores		3.2*7.2 mm	70 kg/km
Installation Temperature range		-15--+60
Operation and transport temperature		-40-+70
Rec.daily max working tension		1500 N
Max. Allowable working tension		600 N
Min Bending Radius(mm)	operation	10D mm
	installation	20D mm
Extra load	0.5%-0.7%
Ice	5mm
Wind speed	35m/s

Fiber Characteristic

Fiber style			Unit	SM G652D	MM 50/125	MM 62.5/125
condition			nm	1310/1550	850/1300	850/1300
attenuation			dB/km	≤0.36/0.23	≤3.0/1.0	≤3.0/1.0
Dispersion		1310nm	Ps/(nm*km)	≥-3.4 ≤3.4	.....	.....
		1550nm	Ps/(nm*km)	≤18	.....	.....
		1625nm	Ps/(nm*km)	≤22
Bandwidth		850nm	MHZ. KM	.....	>=400	>=160
Bandwidth		1300nm	MHZ. KM	.....	>=800	>=500
Zero dispersion wavelength			nm	>=1302,≤1322	.....	.....
Zero dispersion slope			Ps(nm2*km)	≤0.091	.....	.....
PMD Maximum Individual Fiber			Ps√km	≤0.2	.....	.....
PMD Design Link Value			Ps√km	≤0.08	.....	.....
Fibre cutoff wavelength λc			nm	>=1180,≤1330	.....	.....
Cable cutoff wavelength λcc			nm	≤1260	.....	.....
MFD	1310nm		um	9.2±0.4	.....	.....
MFD	1550nm		um	10.4±0.8	.....	.....
Numerical Aperture(NA)				......	0.200±0.015	0.275±0.015
Step(mean of bidirectional measurement)			dB	≤0.05	≤0.10	≤0.10
Irregularities over fiber length and point discontinuity			dB	≤0.05	≤0.10	≤0.10
Difference backscatter coefficient			dB/km	≤0.03	≤0.08	≤0.10
Attenuation uniformity			dB/km	≤0.01	.......	.......
Core diameter			um	......	50±1.0	62.5±2.5
Cladding diameter			um	125.0±0.1	125.0±0.1	125.0±0.1
Cladding non-circularity			%	≤1.0	≤1.0	≤1.0
Coating diameter			um	242±7	242±7	242±7
Coating/chaffinch concentrically error			um	≤12.0	≤12.0	≤12.0
Coating non circularity			%	≤6.0	≤6.0	≤6.0
Core/cladding concentricity error			um	≤0.6	≤1.5	≤1.5
Curl(radius)			um	≤4	.....	.....
Tag: self-supporting cable, figure 8, 24 core. FAQ Q1: Where is your factory ? A1: Our factory is located in DONGGUAN City, GUANGDONG Province, China. Q2: How long has your company been doing this? A2: More than 20 years.We are not only produce fiber optical cable but also produce optical fiber and related tools . Q3:How about the cable's quality? A4: Our factory is approved by ISO9001 quality management system and including STARF,CE,CPR,TLC certifications at list.We have a series of equipment and instruments to make sure reliable quality of our products. Q4: Can you produce cable as our requirements? A6: Of course .We can supply different types of products according to your requirements with reasonable prices . Q5:Do you accept the OEM order and how many is the MOQ? A7:Yes,we warmly welcome your OEM order.To achieve customer's satisfaction,we accept sample order, even one Piece.
