Outdoor 2/4/6/8/10/12/24/36/48/72/144/288 Core Duct Fiber Optical Cable

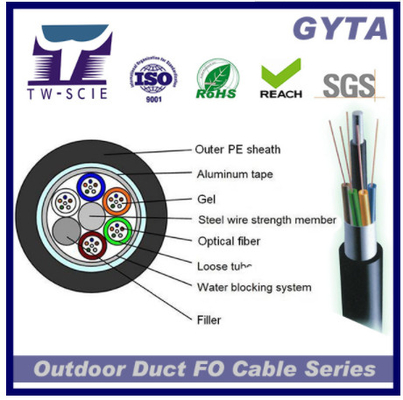

This GYTA Optical Fiber Cable has been designed for long haul / backbone application. Our stranded loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber. GYTA type Fiber Optical Cables are designed for easy and economical installation.
Features & Application
1.Excellent optical, mechanical & environmental performance
2.Moisture-proof & roden-proof
3.High strength-to-weight ratio
4.High tensile strength
5.High crush strength
6.Corrosion resistance
7.Very light weight
8.Very flexible bending radius
9.Long haul / backbone application
Optical Fiber Technical data
Fiber Num. |
Outer diameter (mm) |
Weight (kg/km) |
Min. Bending radius(mm) |
Tension (N) |
Crash loading (N/100mm) |
| Static |
Dynamic |
Short term |
Long term |
Short term |
Long term |
| 2-30 |
9.8 |
95 |
10 times O. D. |
20 times O. D. |
1500 |
600 |
1000 |
300 |
| 32-36 |
10.3 |
115 |
| 38-60 |
10.7 |
115 |
| 62-72 |
11.3 |
140 |
| 74-96 |
12.9 |
175 |
| 98-120 |
14.4 |
210 |
| 122-144 |
15.8 |
245 |
| 146-216 |
16.3 |
260 |
| 218-240 |
19.5 |
345 |
| 242-288 |
21.7 |
415
|
Packaging Detail
GYTS 2-288 Core Optical Fiber Cable package are wooden drum. Outdoor 2-288 Core Optical Fiber Cable's wooden dimension is 100cm*75cm*75cm, 0.57CBM
Outdoor cable's delivery length according to 2-288 Core Optical Fiber Cable cores.
